California Faucets Steampunk Bay Shower

Steampunk Bay Faucet Series 85 | Thermostatic Shower Faucets

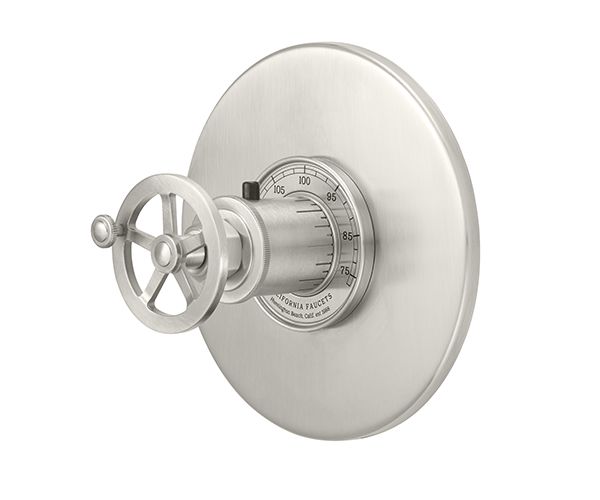

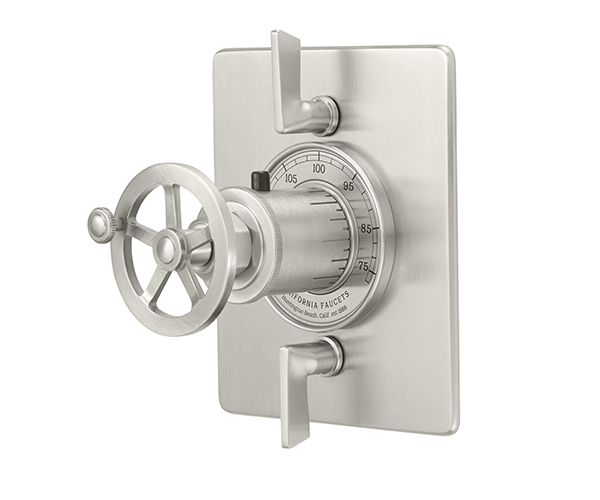

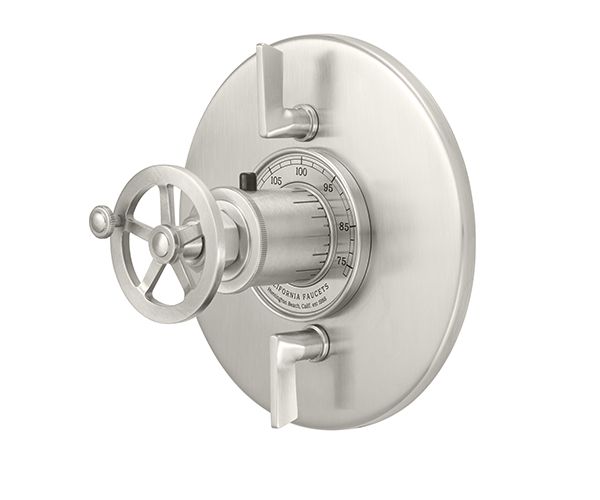

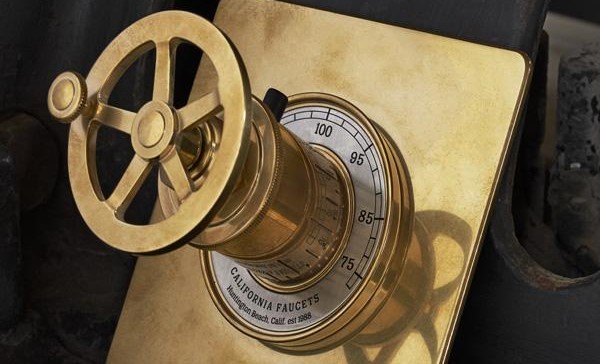

Wheel Handle Thermostatic Control with Stainless Steel Temperature Dial, Shown in Burnished Brass
Shower Faucets with Industrial Handles
Industrial style lends a touch of period timelessness for a memorable bathroom. Introducing California Faucets exciting new Steampunk Bay collection, inspired by steam gauges in the Industrial Revolution with modern technology of ceramic disc cartridges and thermostatic valves. The Steampunk Bay is a fusion of past and present and takes its design cues from industrial-age precision markings, wheel assist handles and surface textures. Choose any of California Faucets 28 finishes including the trend setting matte black, burnished brass and burnished nickel.

Also See Steampunk Bay Sink, Tub, Bidet Faucets and Accessories →

Steampunk Bay StyleTherm Thermostatic Shower

California Faucets offers 5 styles of the StyleTherm Shower Controls: A function (or outlet) is an item the water comes out. For example 2 functions could be shower head and hand shower & three function could be for a tub & shower: shower head, a tub spout and a hand shower. A diverter will divert the water flow from one function to another. Volume controls the water volume of one function.
Learn more about: California Faucets Shower Systems →

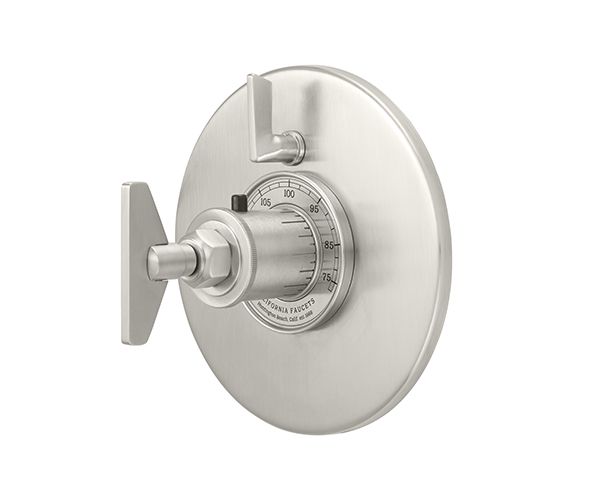

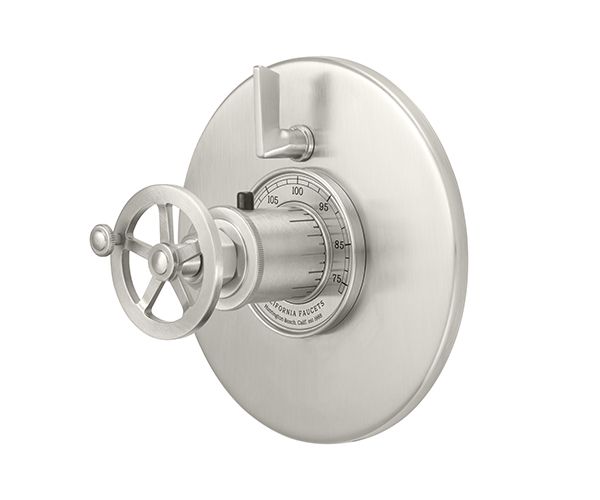

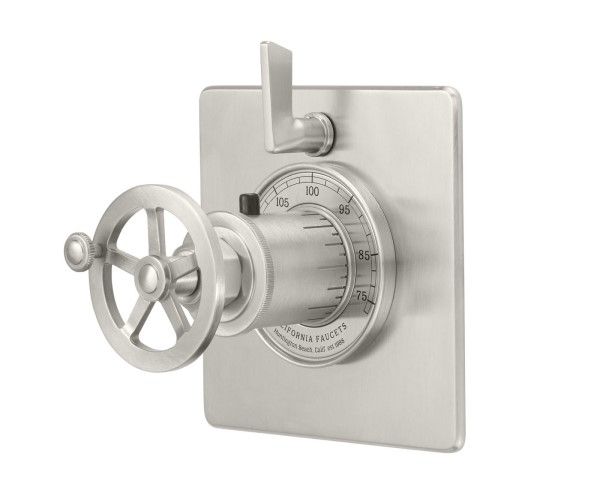

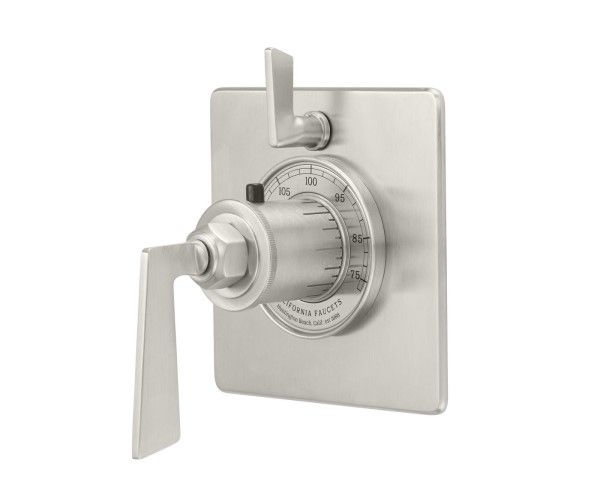

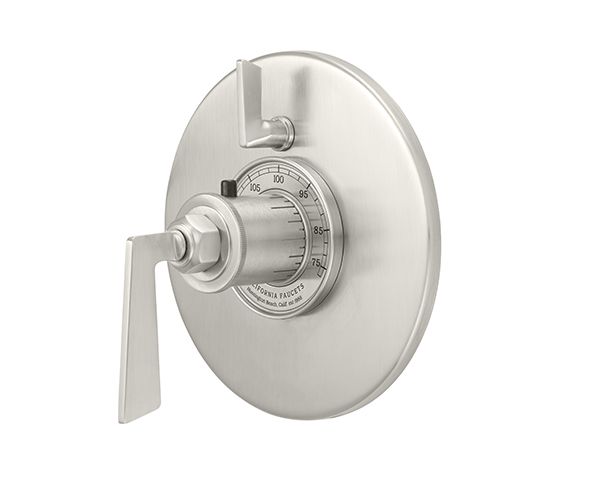

#1 | StyleTherm with Single Volume Control
Volume control for 1 shower function
• Prices include TH51-R Rough Valve
• All brass construction
• Stainless steel temperature dial
• Single integral volume control
• 100° F safety stop button with manual override
• Flow rate: 10 gpm at 60 psi
• 1/2" FIP - 2 inlet
• 1/2" MIP or 1/2" nominal sweat
• 1 outlet
PDF DownloadValve Technical Sheet
View California Faucets Finishes →
California Faucets Retail Price Shown | Call 866-380-0303 or Email for Sale Price

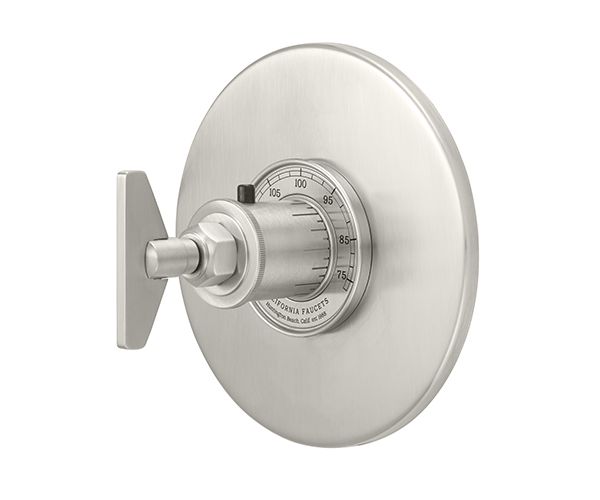

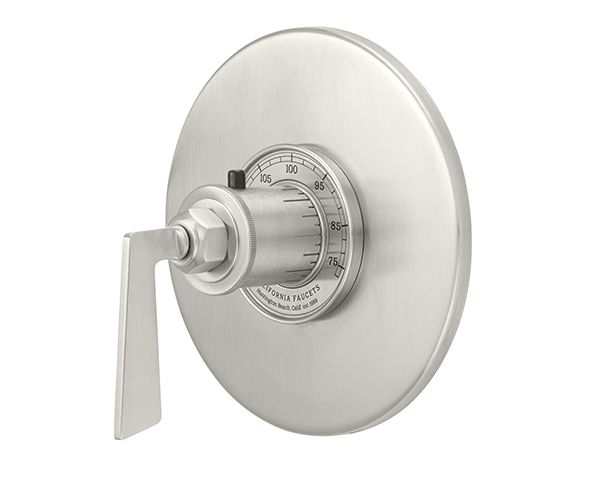

Round Faceplate
7-1/4" round faceplate

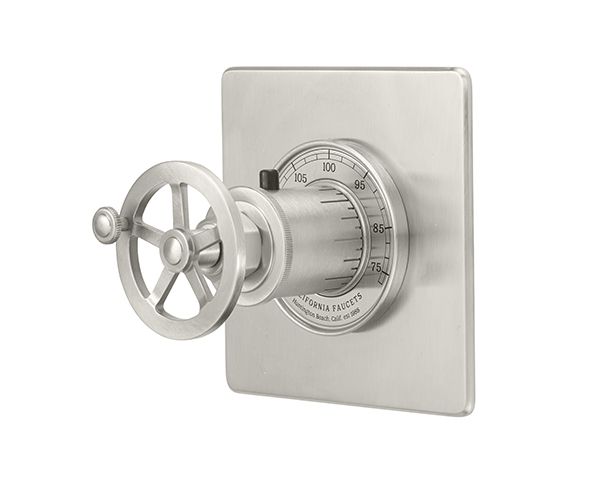

PDF DownloadTrim Technical Sheet Rectangle Faceplate
6-5/16" by 5-1/2" rectangular faceplate
#2 | StyleTherm with Diverter
Diverts between 2 shower functions (non-shared)
Each outlet is fully volume controllable. Full-off at 12 o'clock position; quarter-turn left or right to open each outlet
• Prices include TH51D2-R Rough Valve
• All brass construction
• Stainless steel temperature dial
• 1/2" FIP, 2 Inlet and 1/2" MIP or 1/2" Nominal Sweat - 2 Outlet
• Flow rate: 7.25 gpm @ 45 psi from each outlet
• Dual outlet integral diverter control valve
• CALGreen
PDF DownloadValve Technical Sheet
View California Faucets Finishes →
California Faucets Retail Price Shown | Call 866-380-0303 or Email for Sale Price

Round Faceplate
7-1/4" round faceplate
PDF DownloadTrim Technical Sheet Rectangle Faceplate
6-5/16" by 5-1/2" rectangular faceplate

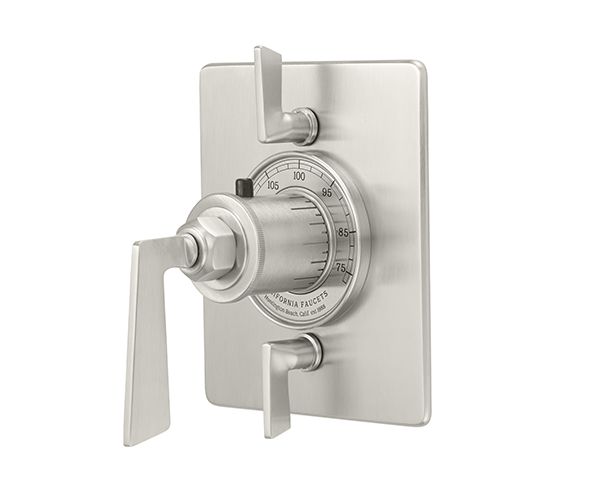

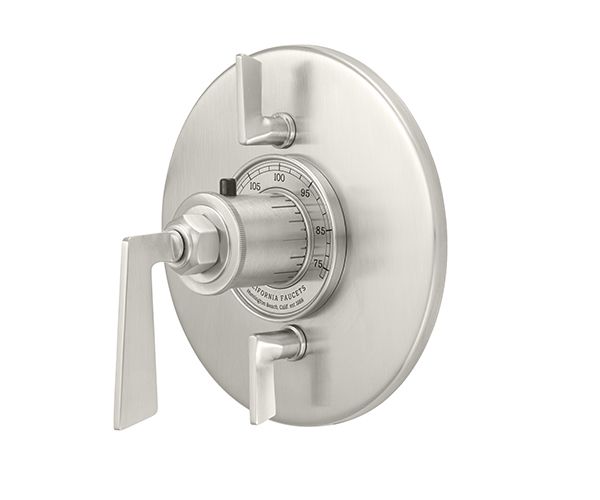

#3 | StyleTherm with Dual Volume Control
2 volume controls for 2 shower functions
Prices include TH52-R Rough Valve
• All brass construction
• Stainless steel temperature dial
• Flow rate: combined 14.3 gpm at 60 psi
• 1/2" FIP - 2 inlet
• 1/2" MIP or 1/2" nominal sweat - 2 outlet
PDF DownloadValve Technical Sheet
View California Faucets Finishes →
California Faucets Retail Price Shown | Call 866-380-0303 or Email for Sale Price

Round Faceplate
7-1/4" round faceplate
PDF DownloadTrim Technical Sheet Rectangle Faceplate
6-5/16" by 5-1/2" rectangular faceplate

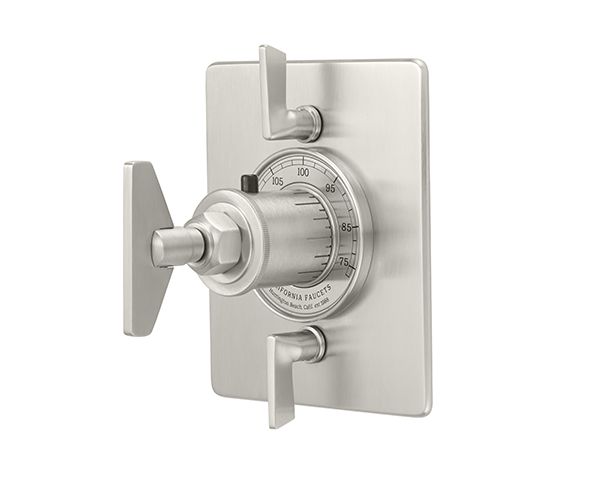

#4 | StyleTherm with Volume Control & Diverter
Diverts between 2 functions & volume control for 3rd
Top outlet features diverter with dual volume controls. Full-off at 12 o'clock position; quarter-turn left or right to open each outlet. Lower outlet features single volume control.

Prices include TH52D2-R Rough Valve
• All brass construction
• Stainless steel temperature dial
• Flow rate: 7.2 gpm at 60 psi from each non-shared outlet
• Flow rate: 10.5 gpm at 60 psi at single volume control
• Integral service stops and check valves
• 1/4 turn ceramic disc volume control cartridge
• Thermoplastic polymer cartridge limits limescale buildup
• 1/2" FIP - 2 inlet
• 1/2" MIP or 1/2" nominal sweat - 3 outlet
• CALGreen (when volume control is used for tub spout)
View California Faucets Finishes →
California Faucets Retail Price Shown | Call 866-380-0303 or Email for Sale Price

Round Faceplate
7-1/4" round faceplate
PDF DownloadTrim Technical Sheet Rectangle Faceplate
6-5/16" by 5-1/2" rectangular faceplate
Optional StyleTherm ADA Handle
Long Modern Handle
THADAC

List Prices:
$26.00 Polished Chrome
$35.00 Special Finish
$42.00 Premium Finish

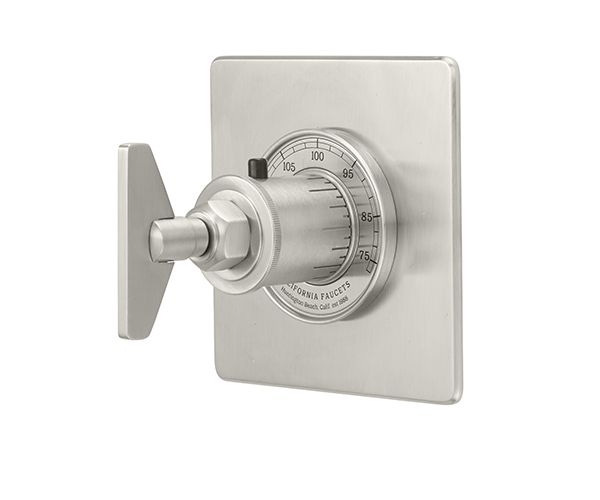

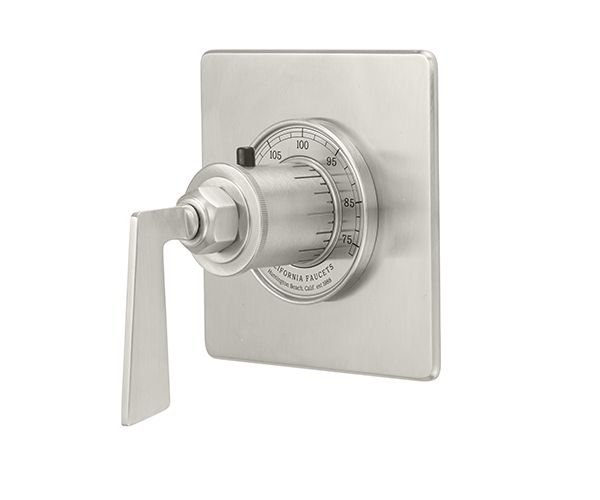

#5 | 3/4" StyleTherm
This thermostatic control requires a thermostatic control to set the water temperature and stops to control the water pressure for each function. Diverters can be used with a stop to divert the water flow from one function to another.

Thermostatic Control
• Max flow rate: 18.2 gpm at 60 psi
• 3/4" FIP - 2 inlet, 2 outlet
• All brass construction
• Stainless steel temperature dial
• Requires In-Wall Stop (Sold Separately)
• Price Includes TH75-R Valve
PDF DownloadValve Technical Sheet
View California Faucets Finishes →
California Faucets Retail Price Shown | Call 866-380-0303 or Email for Sale Price

Round Faceplate
7-1/4" round faceplate
PDF DownloadTrim Technical Sheet Rectangle Faceplate
5-1/2" square faceplate

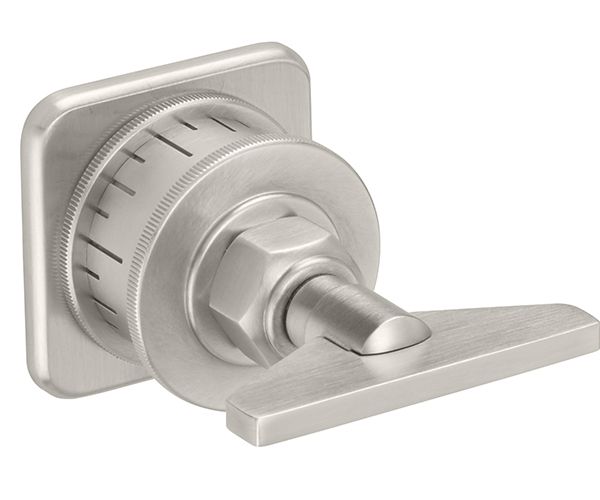

Stops & Diverters
The thermostatic control (above) sets the temperature, a stop valve (volume control) is need to turn the water on & control the water volume. One stop valve is needed for each function, or a combination of stop and diverter. Stop valves are also available in 1/2" and 3/4". Diverters are offered in Non-shared and Swivel Port.
Base plate dimension: 2 5/16"

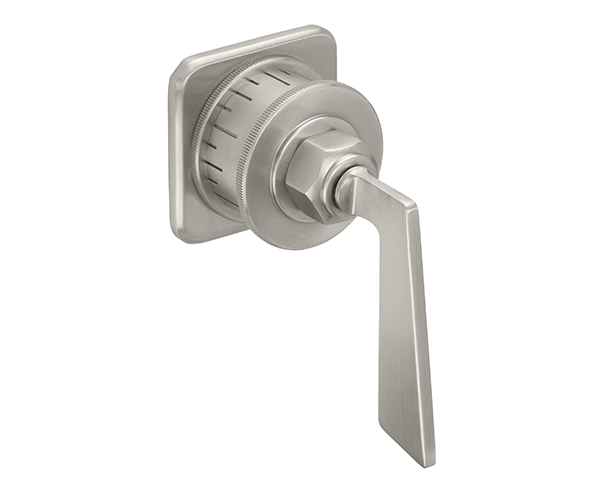

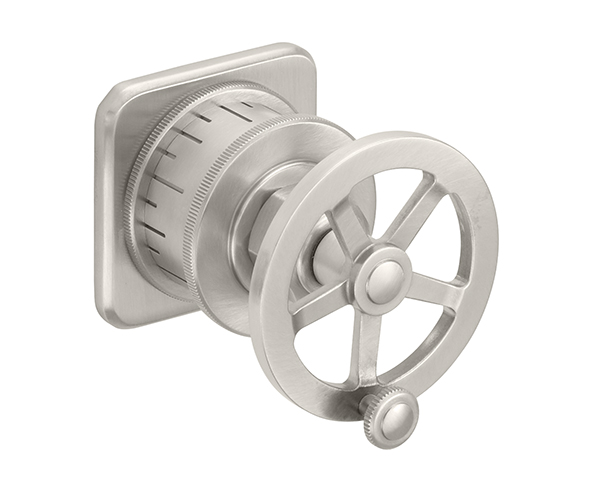

3/4" Stop (volume control)
• 3/4" FIP - inlet/outlet
• Max flow rate: 10.5 gpm at 60 psi
• Forged brass construction
• 1/4 turn ceramic disc cartridge(s)
• Adjustable stem rotation for exact handle alignment
• Price Includes 75-W-R Valve
PDF DownloadValve Technical Sheet

PDF DownloadTrim Technical Sheet 1/2" Stop (volume control)
• 1/2" FIP - inlet/outlet
• Max flow rate: 10.5 gpm at 60 psi
• Forged brass construction
• 1/4 turn ceramic disc cartridge(s)
• Adjustable stem rotation for exact handle alignment
• Price Includes 50-W-R Valve
PDF DownloadValve Technical Sheet

PDF DownloadTrim Technical Sheet Diverter | Shared Ports
• Forged brass construction
• 1/2" MIP or 1/2" nominal sweat - 1 inlet
• 1/2" MIP or 1/2" nominal sweat - 2 or 3 outlet
• Price Includes WDV-R Valve
PDF DownloadValve Technical Sheet

PDF DownloadTrim Technical Sheet Diverter | Non-Shared Ports
• Forged brass construction
• 1/2" MIP or 1/2" nominal sweat - 1 inlet
• 1/2" MIP or 1/2" nominal sweat - 2 or 3 outlet
• Price Includes WDV-NS-R Valve
• CALGreen
PDF DownloadValve Technical Sheet

PDF DownloadTrim Technical Sheet

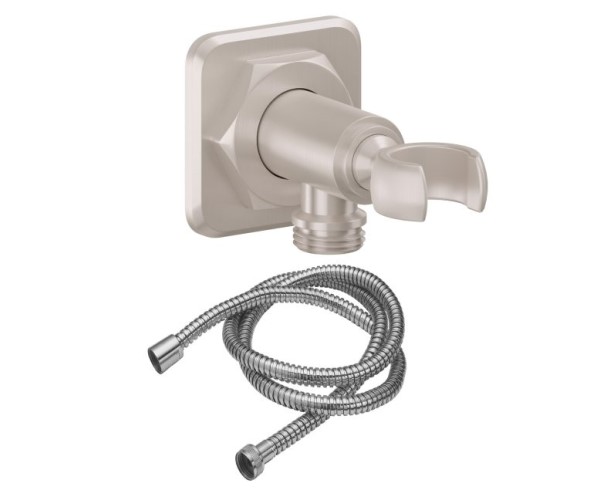

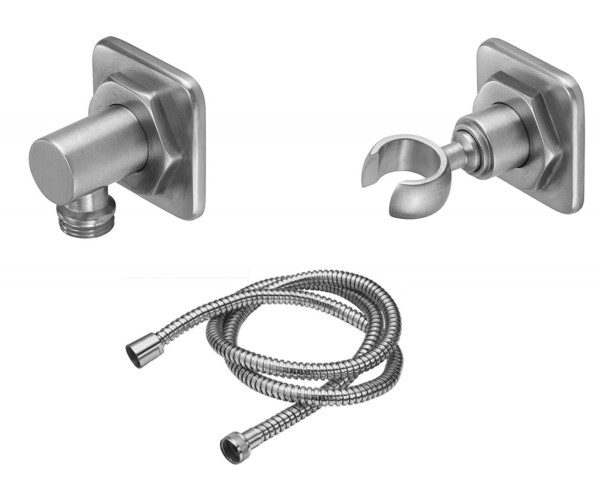

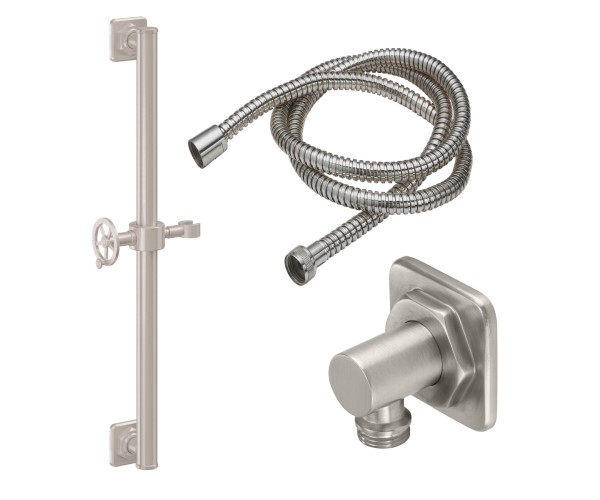

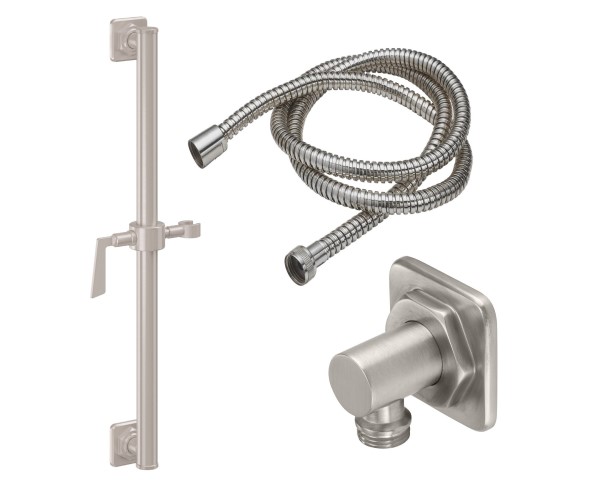

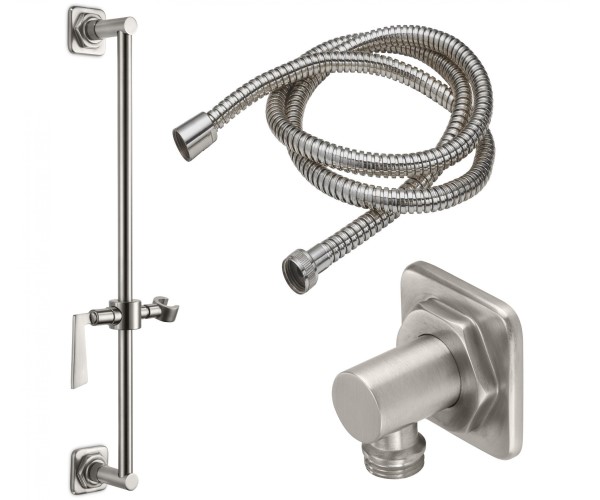

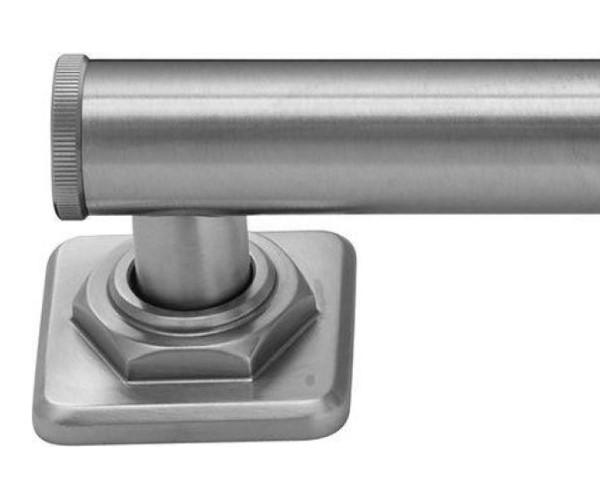

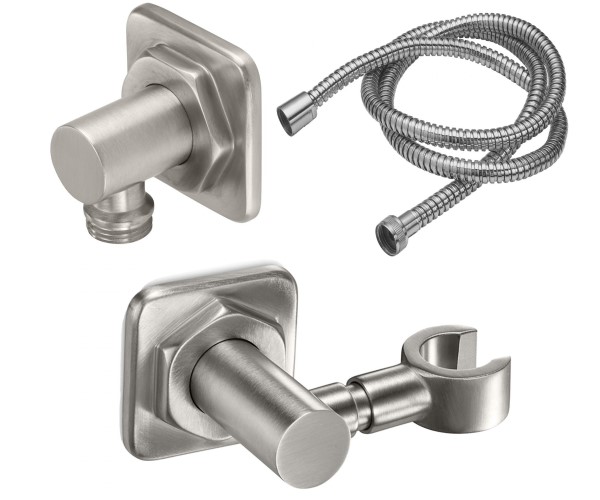

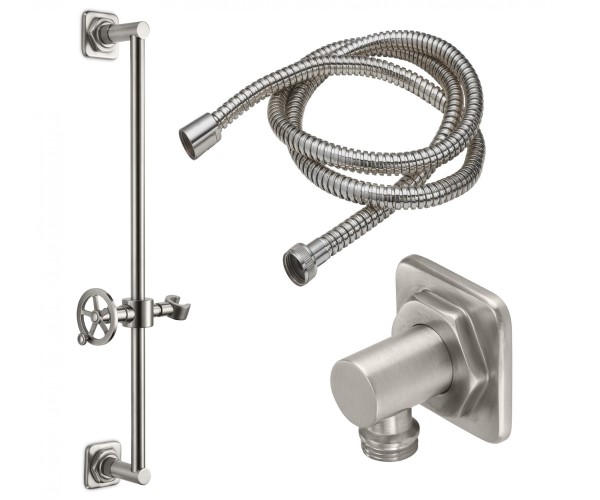

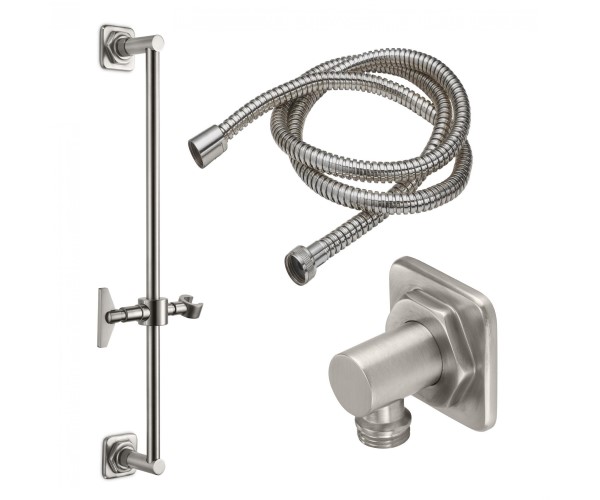

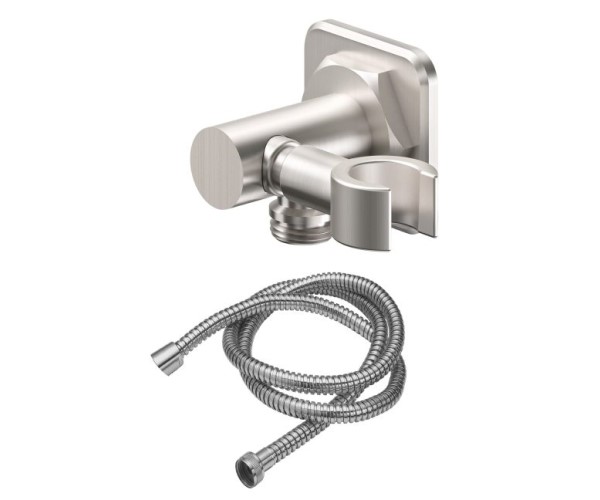

Steampunk Bay Matching Shower Accessories

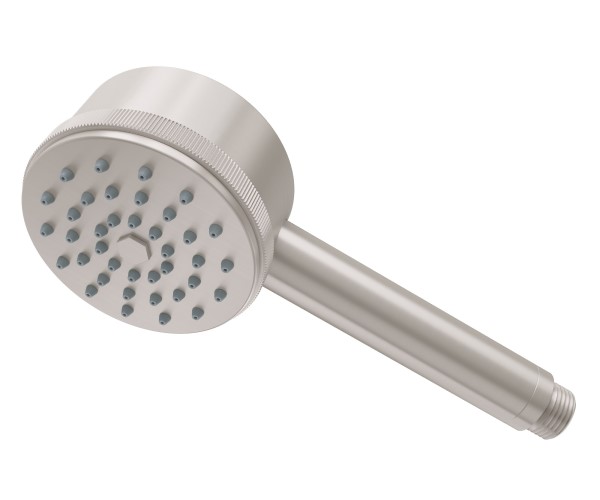

Create a custom shower with California Faucets shower heads, arms, hand showers and body sprays. Matching hand shower sets are listed. Use the links to find your perfect shower head or shower drain.
View California Faucets Finishes →
California Faucets Retail Price Shown | Call 866-380-0303 or Email for Sale Price

See Steampunk Bay Sink, Tub, Bidet Faucets and Accessories →

California Faucets Bathroom Faucets
Unlike much of the mass produced fare that floods the market today, each California Faucet fitting is custom made. Starting with good old-fashioned craftsmanship featuring solid brass construction, they add state-of-the-art ¼ turn ceramic disc valves with lifetime warranties, the world's largest offering of decorative PVD finishes and quality controls that meet or exceed government codes, including national and local lead-free and water conservation standards.
