Hydro Massage Whirlpool Tubs

Enjoy the age-old benefits of whirlpool hydrotherapy in your highly customized whirlpool tub of today. Feel the stress evaporate as you direct and adjust the warm water pressure on your sore muscles, creating a personal massage experience to target your needs. Whether temporarily relieving pain associated with over-activity or daily stress, or helping mitigate chronic effects of certain diseases such as arthritis or diabetes, you will feel better after a hydro massage bath.

Authorized Hydro Massage Dealer

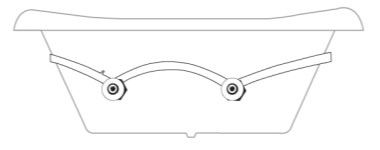

Hydro Massage Ultra Clean Plumbing
Hydro Massage primarily uses a 'FDA NON-TOXIC' recipe tubing. Unlike flexible PVC or porous PVC pipe, our plumbing harness system provides one of the best drain down systems available. They accomplish this by arching our lines 3 to 5 inches above the jets and using approximately 40 percent less active plumbing than their competition. Their air massage also uses smooth wall 'non-toxic' recipe tubing. Combined with their air jet check valve system and Hydro Cleanse, you can be assured that your bath will be sanitary. Hydro Clean Water Purity System & Hydro Cleanse Liquid Cleaner included with every Hydro Massage combination tub. More information →

Hydro Massage Whirlpool Systems

Click on Picture for more Information

Silver Series Whirlpool

Whirlpool Features

Jets
9 Total Air & Water Jets
5 Ultra Flow Hydro Jets
(1 on the lower back, 2 on each long side)
4 Micro Flow Hydro Jets
(2 on the upper back, 2 at the feet)
Pumps
2.25 Hydropower 1-speed Motor
Quiet Time Anti-Vibration Pump Pad
Controls
Air Button On/Off
Purity
Hydro Clean Water Purity System
Hydro Cleanse Liquid Cleaner
Standard Features
EZ Level Adjustable Legs
New Technology Ultra Clean Plumbing System
30 Point Quality Assurance Factory Test
EZ Clean Cast Acrylic
Limited Lifetime Warranty
Requirements:
Pump Locations: Select 1
Electrical: 1 - 115v GFCI
Silver Series Whirlpool
Standard Features:
Whirlpool Jets
Ultra Flow Jet
Ultra Flow Jets produce a powerful stream of water and air to target the hip and leg areas. Customize your massage by turning the jet nozzle.
Micro Flow Jets with Chrome Trim
Micro Flow Jets produce a medium stream of water and air to target the back and arches of your feet. Customize your massage by turning the jet nozzle.
(Picture shown with Optional Chrome Trim)


*Standard Jets & Drains are color matched in White or Biscuit unless specified otherwise. Some features are not available on certain models. Please refer to the tub's specifications sheet for all information.


Silver Series Whirlpool Options

• Ultra Massage Jets
Ultra Massage
These produce a relaxing spinning massage of water and air. Customize your massage by turning the jet to increase or decrease water volume. Replaces Ultra Flow Jet. (Picture shown with optional chrome trim)

• Micro Massage Jets
Micro Massage Jet
Pulsating jet produce a relaxing massage of water and air. Replaces Micro Flow Jet. (Picture shown with optional chrome trim)

• Super Flo 3.25 3-Speed Pump
In-line Whirlpool Maintenance Heater
- Select from a soft, medium or deep tissue massage
- Heavy duty for long life
- Oversize plumbing for high water flow and massage therapy

• In-Line Heater
Helps to maintain bath water temp. Automatically operates any time the Hydro Power pump is running.

• EZ Level Adjustable Base™ with Quiet Time Rubber Legs
EZ Level Base

• Grab bars
Grab Handle
Choose from White, Biscuit, Bone, Polished Chrome or Brushed Nickel

• 3 Color Lighting
Underwater Lighting
Underwater light with two snap on lens caps.

• Chromatherapy Lighting
Multi Color Underwater Lighting
Underwater led light. 7 basic colors, 21 blended colors. Cycle through the lights or pause on one.

• Lift & Turn Drain
Lift & Turn Drain
Reach down to the bottom of the tub and lift and turn it to open the drain. The overflow cover is a flat round disc. White, Biscuit, Bone, Polished Chrome, Brushed Nickel or Oil Rubbed Bronze

• Cable Drain
Reach just below the rim to the overflow, turn the overflow (dial) and a cable will open and close the drain at the bottom of the tub.
Cable Driven Tub Drain
White, Biscuit, Bone, Polished Chrome, Brushed Nickel or Oil Rubbed Bronze

• Deluxe Pillow
Oval Foam Pillow
Available in White or Biscuit, this pillow is removable and adjustable for your comfort.

• More Hydro Massage Options → (All Series Options)

Gold Whirlpool Series

Whirlpool Features

12 Jets
6 Accumassage Back Jets
6 Ultra Flow Jets
Pumps
Super Flo 3.25 Hydropower 3-speed Motor
Quiet Time Anti-Vibration Pump Pad
Heater
Deluxe Stainless Steel Electric Heater
Controls
Air Button On/Off (Whirlpool & Light)
3 Speed Massage Control
Purity
Hydro Clean Water Purity System
Hydro Cleanse Liquid Cleaner
Standard Features
Chromatherapy 3 Light
Lift & Turn Drain
Deluxe Cushion Pillow
EZ Level Adjustable Legs
New Technology Ultra Clean Plumbing System
30 Point Quality Assurance Factory Test
EZ Clean Cast Acrylic
Limited Lifetime Warranty
Electrical & Pump Requirements:
Pump Locations: Select 1
Electrical: 2 - 115v GFCI
Gold Whirlpool Series Features

Standard Features:
Whirlpool Jets
Ultra Flow Jet
Ultra Flow Jets produce a powerful stream of water and air to target the hip and leg areas. Customize your massage by turning the jet nozzle.
Spinning Jet

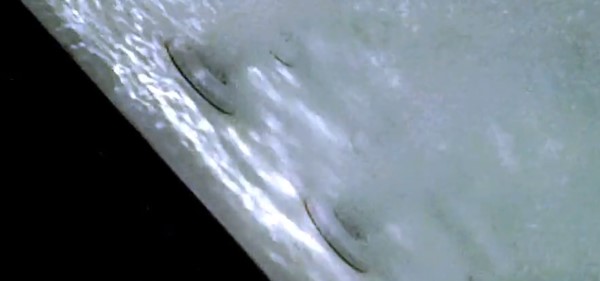

Accumassage Jets targets highly sensitive points in the back, shoulders and neck where they help to relieve tension. These jets are used on all Hydro Massage back massage systems. (Picture Shown with Optional Chrome Trim)

Lift & Turn Drain
Lift & Turn Drain
Reach down to the bottom of the tub and lift and turn it to open the drain. The overflow cover is a flat round disc. White, Biscuit, Bone, Polished Chrome, Brushed Nickel or Oil Rubbed Bronze

Chromatherapy Lighting
Underwater Lighting
Underwater light with two snap on lens caps.


*Standard Jets & Drains are color matched in White or Biscuit unless specified otherwise. Some features are not available on certain models. Please refer to the tub's specifications sheet for all information.


Gold Series Whirlpool Options

• Ultra Massage Jets
Ultra Massage
These produce a relaxing spinning massage of water and air. Customize your massage by turning the jet to increase or decrease water volume. Replaces Ultra Flow Jet. (Picture shown with optional chrome trim)

• Micro Massage Jets
Micro Massage Jet
Pulsating jet produce a relaxing massage of water and air. Replaces Micro Flow Jet. (Picture shown with optional chrome trim)

• Jetted Neck Pillow
Whirlpool Jetted Neck Pillow
Softly lean your head back into the cushioned headrest and adjust the Accu-massage jets to caress your neck. These pressure adjustable jets help target the trapezius muscle to reduce tightness and pain caused by over-use and tension.

• EZ Level Adjustable Base™ with Quiet Time Rubber Legs
EZ Level Base

• Grab bars
Grab Handle
Choose from White, Biscuit, Bone, Polished Chrome or Brushed Nickel

• Chromatherapy Lighting
Multi Color Underwater Lighting
Underwater led light. 7 basic colors, 21 blended colors. Cycle through the lights or pause on one.

• Cable Drain
Reach just below the rim to the overflow, turn the overflow (dial) and a cable will open and close the drain at the bottom of the tub.
Cable Driven Tub Drain
White, Biscuit, Bone, Polished Chrome, Brushed Nickel or Oil Rubbed Bronze

• More Hydro Massage Options → (All Series Options)

Platinum Whirlpool Series

Whirlpool Features

Jets
15 - 22 Water Massage Jets:
7-14 Jet Back Massage System
1 Jet Neck Massage Pillow
1-2 Sole Soother Jets
4 Ultra Flow Jets
Pumps
2 - 3.25 or 2 - 2.25 Hydropower 3-speed Motor
(End drain - 2.25, Center Drain - 3.25)
Quiet Time Anti-Vibration Pump Pad
Heater
Deluxe Stainless Steel Electric Heater
Controls
Digital Temperature Display
Two 3 Speed Hydro Massage Controls
Variable Flow Neck massage Control
Air Button On/Off (Light)
Purity
Hydro Clean Water Purity System
Hydro Cleanse Liquid Cleaner
Standard Features
Chromatherapy Light
Grab Bar(s) - 1 on Side Drain Tubs / 2 on End Drain
Cable Drain
Deluxe Pillow (2 person baths)
EZ Level Adjustable Base
New Technology Ultra Clean Plumbing System
30 Point Quality Assurance Factory Test
EZ Clean Cast Acrylic
Limited Lifetime Warranty
Requirements:
Pump Locations: Select 2
Electrical: 3 - 115v GFCI
Platinum Whirlpool Series Features
Standard Features:
Whirlpool Jets
Ultra Flow Jet
Ultra Flow Jets produce a powerful stream of water and air to target the hip and leg areas. Customize your massage by turning the jet nozzle.
Spinning Jet
Accumassage Jets targets highly sensitive points in the back, shoulders and neck where they help to relieve tension. These jets are used on all Hydro Massage back massage systems. (Picture Shown with Optional Chrome Trim)
Sole Soother
The Sole Soother – a Hydro Massage exclusive. This jet was designed to provide the ultimate foot massage. Water rotates through the 7 ports. (Not Available in a Trim Color)

Cable Drain
Reach just below the rim to the overflow, turn the overflow (dial) and a cable will open and close the drain at the bottom of the tub.
Cable Driven Tub Drain
White, Biscuit, Bone, Polished Chrome, Brushed Nickel or Oil Rubbed Bronze

Chromatherapy Lighting
Multi Color Underwater Lighting
Underwater led light. 7 basic colors, 21 blended colors. Cycle through the lights or pause on one.


*Standard Jets & Drains are color matched in White or Biscuit unless specified otherwise. Some features are not available on certain models. Please refer to the tub's specifications sheet for all information.


Platinum Combo Series Options

• Ultra Massage Jets
Ultra Massage
These produce a relaxing spinning massage of water and air. Customize your massage by turning the jet to increase or decrease water volume. Replaces Ultra Flow Jet. (Picture shown with optional chrome trim)

• 2nd Jetted Neck Pillow (two person tub option)

• More Hydro Massage Options → (All Series Options)

Hydro Massage Options for All Series:
Bathtub Colors
Fashion Colors: Bone & Almond
Designer Colors: Black, Linen, Mexican Sand, Cashmere, Ice Gray, Sandbar, Sterling Silver or Red
(Standard Colors: White & Biscuit)

• Cozy Heated Backrest

• Stay Hot Eco Bond Thermal Insulation
Eco Bond Installation
- Reduces pump noise substantially compared to a traditional bath
- Helps keep the water hot for up to 30 minutes. Provides a Insulating R Factor of 12-18 on most of the bath surfaces
- Renewable resource. Produced from plant based natural oil polyols.

• Deep Soaker Drain
Adjustable Pop-up Drain
Adds up to 2 1/2" extra water depth
- Pop-up drain (bottom of the bathtub)
- Available in White, Biscuit, Chrome, Brushed Nickel & Oil Rubbed Bronze
*Tub controls will be moved to the top deck from the side wall when this drain is chosen*

Adjustable Overflow Depth
1 = Standard Depth, 2 = 1" Extra Water, 3 = Overflow Closed

• Deep Soak Linear Drain
Long and Narrow Tub Drain with Pop-up
Adds 1 - 2" extra water depth
- Pop-up drain (bottom of the bathtub)
- Available in White, Biscuit, Chrome, Brushed Nickel & Oil Rubbed Bronze
*Available on select Zen & Contempra Models*
(Zen 6030SKTF, Zen 6032, Zen 6032SKTF, Contempra 6032SKTF, Zen 6034SKTF, Zen 6036, Zen 6632, Zen 6636 & Zen 7236)

• Hand-held Body Jet
Hand Held Jet with Hose

• Whirlpool Metallic Trim
Jet Trim
Choose from Polished Chrome, Satin Nickel or Oil Rubbed Bronze

• Factory Installed Tile Flange

• Hydro Sound
Hydro Sounds
Hydro Sounds is a speaker system (2) that mounts to the back of the bath and it transforms the tub into a large speaker so the sound comes from the tub and water and the bass actual vibrates the water if powered correctly and proper music. The music source must be provided from a home stereo along with a amplifier.

• Deluxe Pillow
Oval Foam Pillow
Available in White or Biscuit, this pillow is removable and adjustable for your comfort.

• Eco Pure Bath & Water Conditioner
Eco Pure Water Additive
• Re-hydrates and nourishes your body with natural vitamins and minerals.
• Moisturizes your skin and leaves it silky smooth.
• Helps eliminate Bio Residual contaminants on jets and internal plumbing system.
• Works with Hydro Therapy to reduce stress, relieve pain, detoxify and stimulate both your digestive and immune systems.
• Naturally purifies water for a healthier home bath experience.
• Reduces cleaning and maintenance of the bath surface.

Hydro Massage Clean
Besides Ultra Clean Plumbing, Hydro Massage includes Hydro Clean Water Purity System & Hydro Cleanse Liquid Cleaner with each whirlpool combination tub.
• Hydro Clean (Electronic Water Purity System | Ozone)
Ozone System
Fully automatic and all-natural whirlpool bath sanitation system which sanitizes the bath water anytime the pump is operating. It is more than 200 times stronger than household bleach. It is fully automatic, all natural and safe for the environment. Gentle enough to be used while bathing, the Hydro Clean unit helps kill bacteria and will reduce the amount of cleaning required.

• Hydro Cleanse
Bathtub cleaner that will help maintain a clean and fresh whirlpool or air bath by removing body oils, fragrances and soap residue.

Frequently Asked Whirlpool Questions

Whirlpool Operation

How many amps does the pump draw? - 13 Amps.
Is the pump hard wired in? - No, Plug in with ground.
Is the pump loud? - A pump and blower will make some noise depending on the installation technique and room environment. It can be reduced with installation around bath.
What decibel level? - 15-20 decibels installed
How far does the motor stick out? - The bath extends normally within the perimeter but it could be up to 4" beyond on select models.
How long is the power cord? - 24”.
Access required – where do I put my access? - Code requires an access door available to access the pump and motor. The access door must be large enough to enable the equipment to be removed from the bath. It is recommended to be a minimum of 18" x 18".

Jets

Can I put the jets where I want? - Hydro Massage will try to accommodate request, if request is within the engineering standards of the model.
How do I turn off the Ultra flo & Micro flo jets? - On the control panel. Most jets can be turn off at the jet up to 95% of the water pressure.
Can I flip the back systems on a side drain tub? - Yes

Neck masseur pillow

How does it work? - It has 2 jets that pulsate behind the pillow.
Where do I turn it on and off at? At the diverter valve.
Do I have to use the Lycra cover? - Yes or water will splash into the bath area.
Does it turn completely off ? (people not wanting to get hair wet) - Diverter Valve will reduce the flow up to 95%.

Inline maintenance heater

Is the heater hard wired in? - No, it is installed to a Wall plug.
Electrical requirements? - 115 volt 20 amp GFCI outlet with a separate outlet.
Can the pump & Inline maintenance heater on same circuit? - No, each needs to be on a separate electrical outlet.
How do you turn it on and off? - Automatically activates when the whirlpool system is turned on.
How many amps does it draw? - 20 amps.
What temperature does it heat to? - It maintains the temperature of the water that is placed in the bath. Over an extended length of time it will heat to 104 degrees + or – 2 degrees.
Where is it installed at? - In the plumbing system near the pump.
How long is the cord? - 24"
