MTI Caribe Tub
Whirlpool, Air Tub or Combination Bathtub - Designer Series
Caribe MTDS-89 Rectangle Tub - 78 x 47 Whirlpool, Air or Soaking Tub, Drop-in or Undermount, Tub Designed for 2 with Overflow Rim
MTI Caribe - Overflow bath allows total
immersion in luxury.
Caribe is an overflow tub, which features a water
canal with 2 drains around the perimeter.
Chrome Drain Kit Standard, Optional in Brushed Nickel.
See Caribe Optional Decks Below
Caribe Optional Single and Double Deck
 |
 |

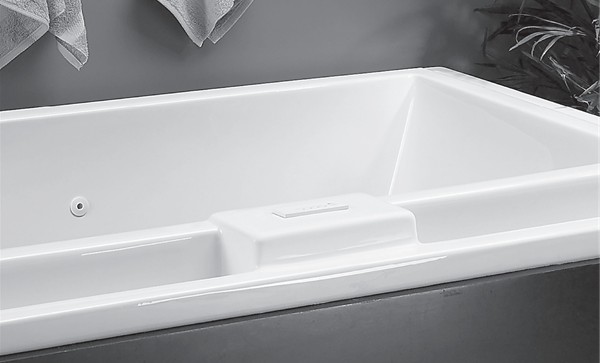

| SINGLE MOUNTING DECK FEATURES In order to accommodate the installation of various fixtures and controls, Caribe may be ordered with a single mounting deck. This 12" x 6 ½" deck is positioned in the center of the water canal. It may be positioned on either the front or rear side of the tub. This provides a mounting surface for spout and hot and cold mixing valves, if they are not wall mounted. If the spout and valves are wall-mounted, the deck would accommodate controls for the whirlpool and / or air bath. A deck is required for mounting the whirlpool controls. Deck does not interrupt the operation of the overflow function. Must be specified at the time of ordering. |

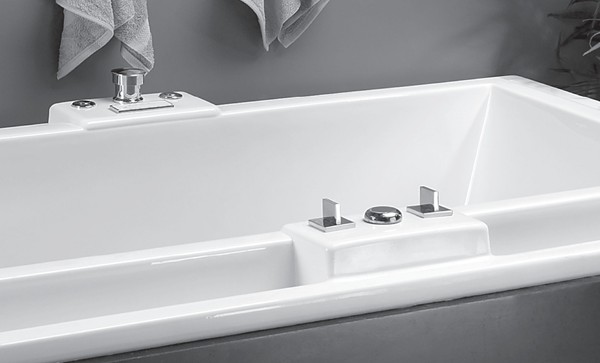

DUAL MOUNTING DECKS FEATURES In order to accommodate the installation of various fixtures and controls, Caribe may be ordered with dual mounting decks. These 12" x 6 ½" decks are positioned in the center of the water canal. One is located at the front of the tub, the second at the rear. Two decks are necessary when space for fixtures and multiple controls is required. One deck would provide a surface for the spout and hot and cold mixing valves. The second deck would house the air bath and / or whirlpool controls. A deck is required for mounting the whirlpool controls. Decks do not interrupt the operation of the overflow function. Must be specified at the time of ordering. |
General Specifications:
78.25" x 46.75" x 22"
Bathing Well:
Length: 61.25" top / 46.5" bottom
Width: 29.5" top / 26" bottom
Plumbed Weight: 185 lbs
Average Fill: 60 gal to above jet level
Maximum Fill: 130 gal to overflow

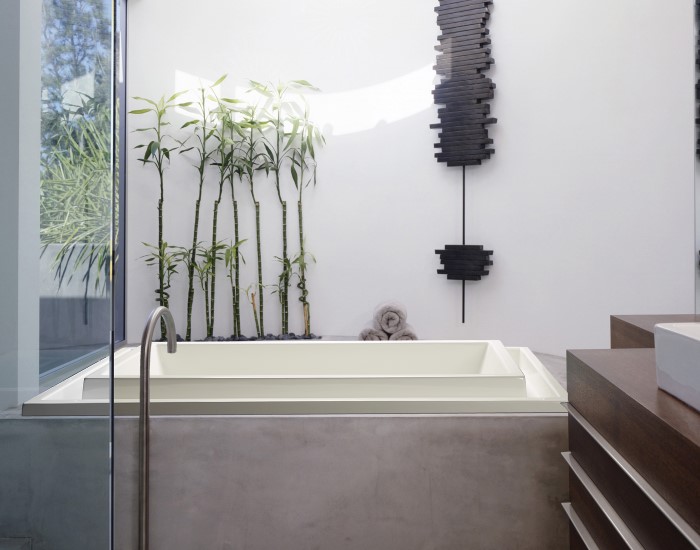

Drop-in Bathtub or Undermount
Free Shipping - Continental US
Authorized MTI Dealer
(List Price not Sale Price Shown Below)
MTI Caribe MTDS-89
Technical Sheet
Warranty
Installation & Operation Manual
| Caribe Soaking Tub | | List Price |
Soaker - S89 |
| $2872.00 |
Tub Only |
|
Heated Soaking Tub - S89 + HTISOAK |
| $3571.00 |
Re-circulating Pump/Heater |
|
| Caribe Whirlpool | | List Price |
Whirlpool Standard Therapy - P89 |
| $4834.00 |
6 Point-massage Jets |
|
Whirlpool Ultra Therapy - P89U |
| $5353.00 |
8 Point-massage Jets |
|
| Caribe Air Tub | | List Price |
Aria Air Bath - AST89 |
| $5105.00 |
20 Air Jets |
|
Aria Elite Air Tub - AE89 |
| $6880.00 |
30 Air Jets |
|
| Caribe Whirlpool & Air Combination | | List Price |
Aria Air & Standard Therapy Whirlpool - AW89 |
| $6823.00 |
6 Point-massage Jets |
|
Aria Air & Ultra Therapy Whirlpool - AU89 |
| $7370.00 |
8 Point-massage Jets 3 BHP Pumps |
|
Aria Elite & Standard Therapy Whirlpool - AEAP89 |
| $8621.00 |
6 Point-massage Jets |
|
| Aria Elite Air & Ultra Therapy Whirlpool - AEAP89U | | $9083.00 |
8 Point-massage Jets 3 BHP Pump |
All Tub Systems
Radiance®
Stereo H2O® with 2 transducers
Virtual Spout
Brushed Nickel Drain Kit
Textured Non-Slip Bottom
Chromatherapy: digitally controlled LED lighting
Pillows
Pre-Leveled Foam Base (standard with air baths)
Tile Flange Kit
Whirlpool Options
Trim Kits
Inline Heater Installed
Low Water Sensor
Rotary Jets: Can be substituted for Point-Massage Jets (max 2)
Additional Point-Massage Jets
Micro-Jets
3 BHP Pump Upgrade
Cleaning Systems
Breda Valve
Ozonator Bath Sanitation System
Air Options
Inline Heater Installed
More Information on MTI Options and Features→
